A63.7015 Tungsten Filament Scanning Microscope 20x~150000x

Name: A637015 Tungsten Filament Scanning Microscope 20x150000x
Brand: OPTO-EDU
Price: 1 USD

Brand Name : OPTO-EDU

Model Number : A63.7015

Certification : CE, Rohs

Place of Origin : China

MOQ : 1 pc

Price : FOB $1~100000, Depend on Order Quantity

Payment Terms : T/T, West Union, Paypal

Supply Ability : 5000 pcs/ Month

Delivery Time : 5~20 Days

Packaging Details : Carton Packing, For Export Transportation

Resolution : 5nm@30KV(BSE)

Magnification : 20x~150000x

Electron Gun : Pre-Centered Tungsten Filament Cartridge, Bias Voltage Auto System

Voltage : "Accelerating Voltage 1KV to 30KV, 1KV/5KV/10KV/15KV/20KV/30KV-6 Steps

Lens System : "2-Stage Electromagnetic Condenser Lens, 1-Stage Electromagnetic Objective Lens"

Max Specimen : 80mm in Diameter, 35mm in Height

Image Shift : X, Y Image Shift ±150um

Image Format : BMP, JPEG, PNG, TIFF

Auto Function : Auto Start, Auto Focus, Auto Brightness/Contrast

Photo Display : Magnification, Detector type, Accelerating Voltage, Vacuum mode, Logo(Text), Date & Time, Text Marker, Scale Bar, etc.

Specimen Working Stage : 5-axis System ， X, Y-axis : 35mm / R-axis : 360°, Z : 0~22mm / Tilt-axis : 0~45°

Contact Now

Tungsten Filament Scanning Electron Microscope, SE, 20x~150000x

20x~150000x Resolution 5nm With Detector SE, Optional BSE, EDS, CCD
Standard X/Y/R 3 Axes Working Stage, Optional Five Axes Working Stage X/Y/Z/R/T
2-Stage Electromagnetic Condenser Lens, 1-Stage Electromagnetic Objective Lens
Vaccum System: 1 Turbo Molecular Pump+ 1 Mechanical Rotary Pump
Auto Start, Auto Focus, Auto Brightness, Contrast Adjust

A63.7015 Tungsten Filament Scanning Microscope 20x~150000x

Tungsten Filament Scanning Electron Microscope (SEM)
	A63.7006	A63.7015
Resolution	15nm@30KV(SE)	5nm@30KV(BSE)
Magnification	20x~60000x	20x~150000x
Electron Gun	Pre-Centered Tungsten Filament Cartridge, Bias Voltage Auto System
Voltage	Accelerating Voltage 1KV to 30KV, 1KV/5KV/10KV/15KV/20KV/30KV-6 Steps
Lens System	2-Stage Electromagnetic Condenser Lens, 1-Stage Electromagnetic Objective Lens
Aperture	-	Adjustable Iris Diaphragm 30/50/50/100um, Change Electro Beam To Get High Resolution Image
Vacuum System	Rotary Pump, 100Liters/min Turbo Molecular Pump, 70Liters/sec Pump Down Ttime <3 Minutes Fully Auto Vacuum Control
Detector	SE: Secondary Electron Detector
	BSE: Back Scattering Detector (Optional)
	EDS: (Optional)
Specimen Working Stage	3 axis System,X, Y-axis : 35mm / R-axis : 360°	5-axis System , X, Y-axis : 35mm / R-axis : 360°, Z : 0~22mm / Tilt-axis : 0~45°
Max Specimen	70mm in Diameter, 30mm in Height	80mm in Diameter, 35mm in Height
Image Shift	X, Y Image Shift ±150um
Image Scanning System	Fast Scan: 320x240 (Scan Time: 0.1 sec.) Slow Scan: 640x480 (Scan Time: 3 sec.) Photo Mode 1: 1280x960 Photo Mode 2: 2560x1920 Photo Mode 3: 5120x3840
Image Format	BMP, JPEG, PNG, TIFF
Auto Function	Auto Start, Auto Focus, Auto Brightness/Contrast
Photo Display	Magnification, Detector type, Accelerating Voltage, Vacuum mode, Logo(Text), Date & Time, Text Marker, Scale Bar, etc.
Computer & Software	PC Work Station Win 10 System, With Professional Image Analysis Software To Fully Control Whole SEM Microscope Operation, Computer Specification No Less Than Inter I5 3.2GHz, 4G Memory, 24" IPS LCD Monitor, 500G Hard Disk, Mouse, Keyboard
Size & Weight	Microscope Body 460x600x950mm, Total Weight 95Kg
A63.7006, A63.7015 Standard Tools & Parts Outfit
1	Pre Centered Tungsten Filament	5 pcs/box
2	Sample Stage Dia. 15mm	10 pcs
3	Sample Stage Dia. 25mm	10 pcs
4	Sample Stage Dia. 15mm 45° Tilt	5pcs
5	Sample Stage Dia. 15mm 90° Tilt	5pcs
6	Height Standard Master	1 pc
7	Allen Wrench	1 set
8	SEM Software CD	1 pc
9	Carbon Conductive Tape)	1 pc
10	Scissors	1 pc
11	Aurilave	1 pc
12	Tweezers	1 pc

Product Tags:

tungsten filament scanning microscope

20x scanning microscope

150000x opto edu microscope

Quality A63.7015 Tungsten Filament Scanning Microscope 20x~150000x for sale

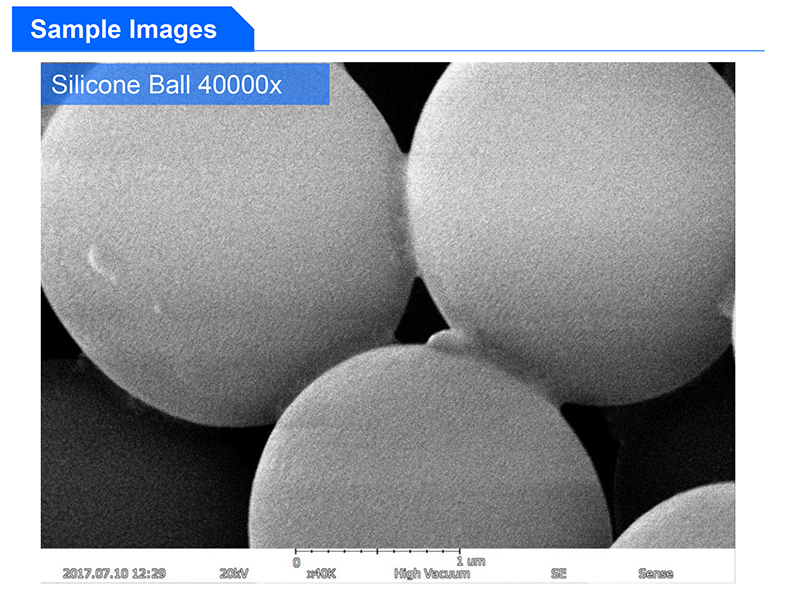

A63.7015 Tungsten Filament Scanning Microscope 20x~150000x Images
