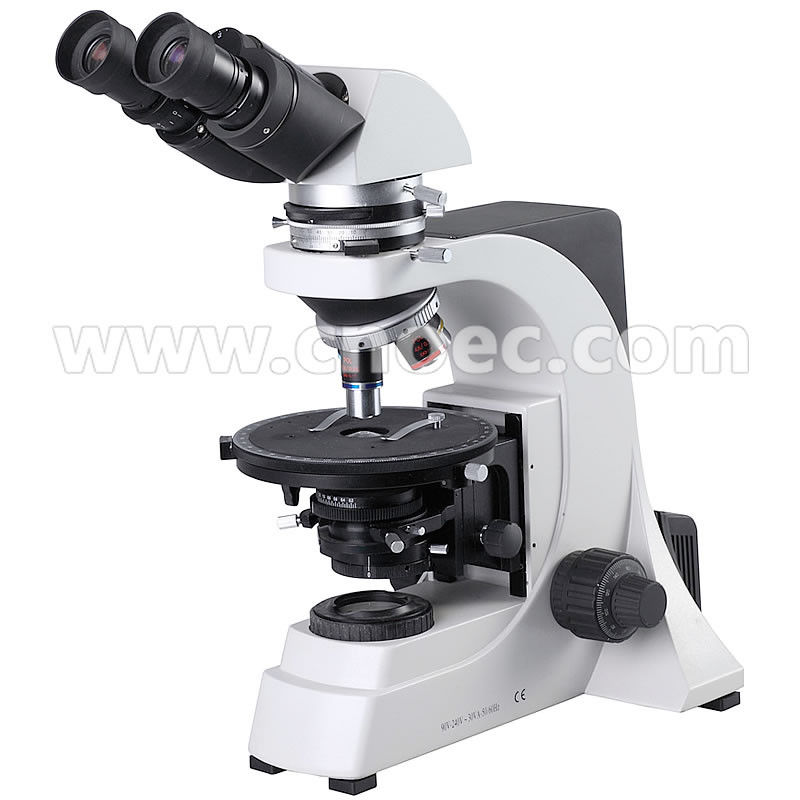

Binocular / Trinocular Head Polarizing Light Microscope 1000x A15.0901

Name: Binocular Trinocular Head Polarizing Light Microscope 1000x A150901
Brand: CNOEC, OPTO-EDU
Price: 1 USD

Quality Binocular / Trinocular Head Polarizing Light Microscope 1000x A15.0901 for sale

Place of Origin : China

Brand Name : CNOEC, OPTO-EDU

Certification : CE|Rohs

Model Number : A15.0901

MOQ : 1 pc

Price : Negotiation

Packaging Details : Carton Packing, For Export Transportation

Delivery Time : 5~20 Days

Payment Terms : T/T, West Union, Paypal

Supply Ability : 5000 pcs/ Month

application : Research|Laboratory

Drawtube : Binocular|trinocular

Illumination : LED

magnification : 40x - 1000x

Theory : Polarizing Light Microscope

Contact Now

Binocular / Trinocular Polarizing Light Microscope 1000x A15.0901

Description:

★Infinity Corrected Optical System
--The Infinity Corrected Optical System design has corrected chromatic aberration on the base traditonal optical system, A significant development in optical performance and versatility.
--The Infinity Corrected Optical System has been designed to fit different accessories according to customers requirements, including dark filed, phase contrast accessories, polarizing kits, and fluorescence light etc.
★ Microscope Stand
This series microscope can be optimal integrates and maximum expandability as fully functions.
Shapely configuration, furthermore, the Stand ensured the stability of the microscope. This Series is handled more comfortable because of the Ergonomic design.
Ergonomic design has made this cope comfortable with the manner in which you working. The focusing controls and the brightness controls are greatly improved the comfort for the user

Specifications:

Speicification	A15.0901	A	B
Optical	Color corrected infinity optical system	●	●
Head	Compensation free binocular head	●
	Compensation free trinocular head		●
Eyepiece	PL10X/22mm high eye-point plan eyepiece each with eye-cup
Objective	Infinity plan achromatic objective 4X
	Infinity plan achromatic objective 10X
	Infinity plan achromatic objective 20X
	Infinity plan achromatic objective 40X
	Infinity plan achromatic objective 100X
Nosepiece	Reversed quintuple nosepiece
Condenser	N.A1.2/0.22 swing achromatic conderser
Illumination	Build-in koehler illuminator systems.6V 30W halogen bulb(Philips 5761), adjustable brightness
Stage	175145mm mechanical stage,moving range:7550mm
Focusing	Lowness coaxial focus system with tension adjustment,with up-limited. Stage range: 25mm, precision0.002mm
Filter	Blue filter Φ 45
Stand	Ergonomic design, the inverted"Y" support in the back of the microscope provides extra lateral stability

Optional Accessories		Item No.
Eyepiece	Plan eyepiece 10x(with reticle)	EP10X22r
Eyepiece	Plan eyepiece 16x/16mm	EP16X16
Objective	Plan achromatic objective 4x	OP4
	Plan achromatic objective 10x	OP10
	Plan achromatic objective 20x	OP20
	Plan achromatic objective 40xs	OP40
	Plan achromatic objective 100xs	OP100
	Infinity Plan phase contrast objective P10x	XY-PPCI10
	Infinity Plan phase contrast objective P20x	XY-PPCI20
	Infinity Plan phase contrast objective P40xs	XY-PPCI40
	Infinity Plan phase contrast objective P100xs	XY-PPCI100
	Plan phase contrast objective P10x	XY-PPC10
	Plan phase contrast objective P20x	XY-PPC20
	Plan phase contrast objective P40xs	XY-PPC40
	Plan phase contrast objective P100xs	XY-PPC100
Nosepiece	Reversed quadruple nosepiece	XY-NPI4
Condenser	N.A.1.25 five holes phase contrast condenser(Infinity)	XY-PCI
Condenser	N.A.1.25 five holes phase contrast condenser	XY-PC
Filter	Green filter	XY-FCG
	Yelllow filter	XY-FCY
	Netural filter	XY-FCF
Dark Field Condenser	Dark Field Condenser(Dry)N.A.0.9	XY-DDC
Dark Field Condenser	Dark Field Condenser(Immersion)N.A.1.25	XY-WDC
TV Adapter	0.5X	XY-XTV0.5
TV Adapter	0.35X	XY-XTV0.35
Polarizing Attachment	Polarizer,Analyser,Rotatable round machanical stage	XS-PGFJ
Fluorescent Attachment	Epi-fluorescent illumination(100W mercury lamp),fluorescent power,B,G,U,V	XY-YGFJ

Binocular / Trinocular Head Polarizing Light Microscope 1000x A15.0901
